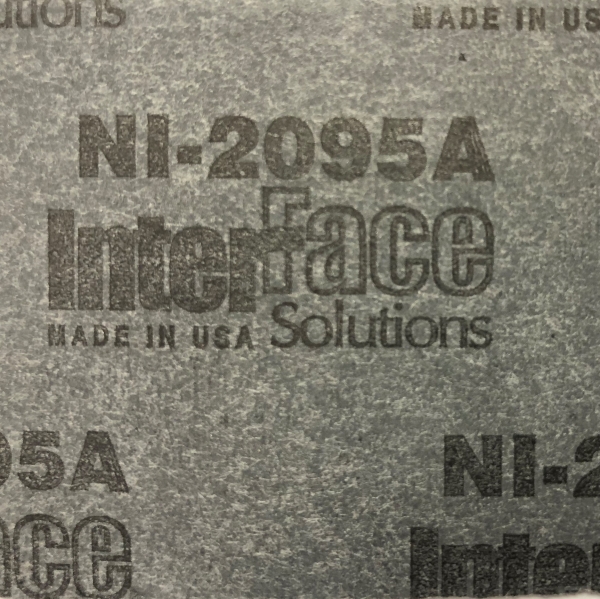

NI-2095A

Standard / Nonasbestos Head Facing Material

ASTM F-104: F729150E92M9

Material Description:

NI-2095A is a cylinder head facing material designed to deliver the performance required by worldwide cylinder head applications. It is a non-asbestos material with inorganic fillers encapsulated by nitrile butadiene rubber, and is easy to combine on perforated metal core. (Minimum order requirements may apply).

Specification Properties:

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.15 (72) (min.) ASTM F 1315
Compressibility, % (at 34.5MPa) 15-30 ASTM F 36
Recovery, % 25 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 4.14 (600) (min.) ASTM F 152
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 30 (max.)
          Change in Thickness, % 15 (max.)
          Change in Weight, % 40 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 10 (max.)
          Change in Weight, % 35
Binder Type Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2015 Registered

To see the full PDF and print it please click on the link below.

View/Print PDF
