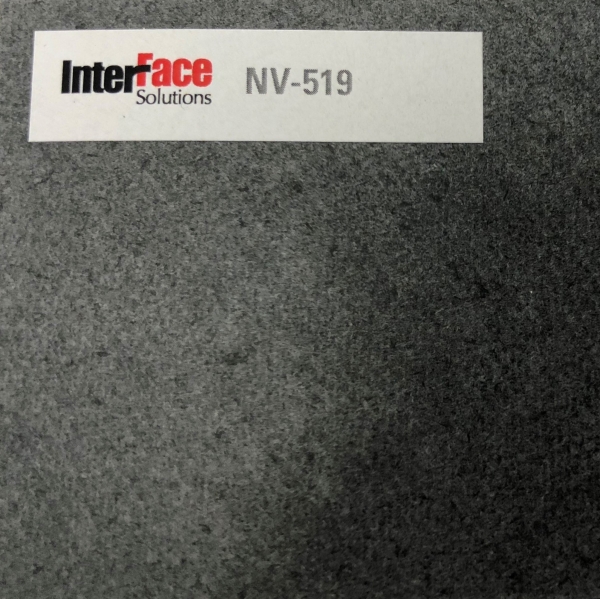

NV-519

Standard/Nonasbestos Gasket Material

ASTM F-104: F332949M8

NV-519 is a cellulose fiber material with thermoset resin and nitrile butadiene rubber binder. It has excellent tensile strength, crush resistance, and erosion resistance against high volume fluid flow and impingement. It is used primarily in automatic transmission valve body, pump, and accumulator/ channel plate applications as well as carburetors and air compressors. It is intended for use in applications with short duration maximum temperatures up to 180°C (350°F).

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 0.96 (60) (min.) ASTM F 1315
Compressibility, % (at 6.9Ma) 5-15 ASTM F 36
Recovery, % 60 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 27.59 (4000) (min.) ASTM F 152
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Thickness, % 10 (max.)
          Change in Weight, % 30 (max.)
Fluid Resistance, Dexron VI   ASTM F 146
          Change in Thickness, % 10 (max.)
          Change in Weight, % 30
Fluid Resistance, Distilled Water   ASTM F 146
          Change in Thickness, % 70 (max.)
          Change in Weight, % 70
Binder Type Fully Cured Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2008 Registered
