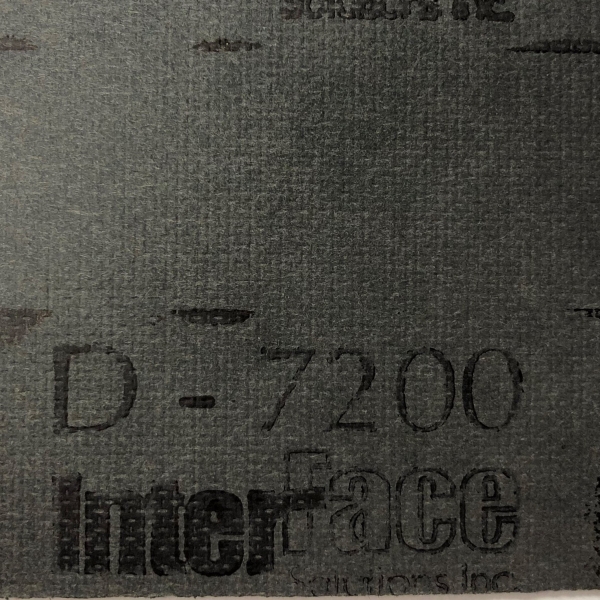

D-7200

Hydro-Fused®/Nonasbestos Gasket Material

ASTM F-104: F729900E32M6

Material Description:

D-7200 is a high density fully cured nitrile butadiene bound material with good resistance to oil, fuel, water, and coolant. It is intended for applications with short duration maximum temperatures up to 180°C (350°F).

Specification Properties

PropertyValueMethod
Compressibility, % (at 34.5MPa) 8-18 ASTM F 36
Recovery, % 40 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 13.79 (2000) (min.) ASTM F 152
Flexibility, Mandrel Bend, 12 X Ga. Pass ASTM F 147
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 30 (max.)
          Change in Thickness, % 10 (max.)
          Change in Weight, % 20 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 10 (max.)
          Change in Weight, % 20 (max.)
Binder Type Fully Cured Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2008 Registered
