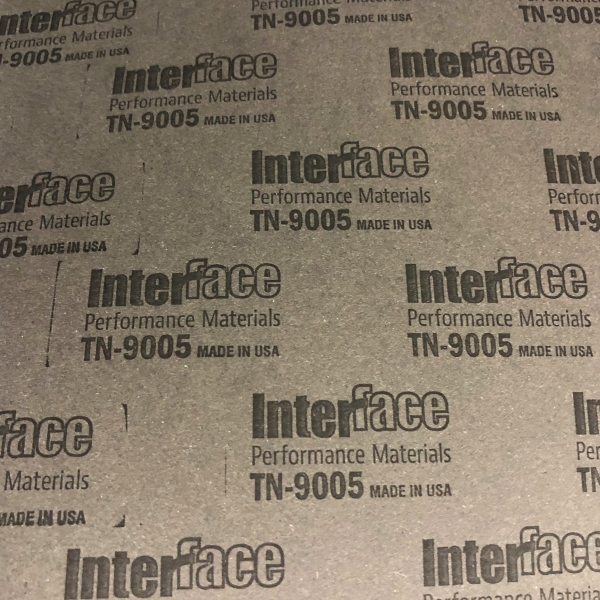

TN-9005

Thermo-Tork® / Nonasbestos Gasket Material

ASTM F-104: F729900E59M5

Material Description:

TN-9005 is a heavy-duty material with a latent cure nitrile binder system. It conforms well to irregular flange surfaces, and is suitable for applications with short duration maximum temperatures up to 350°C (650°F).

Specification Properties:

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.28 (80) (min.) ASTM F 1315
Compressibility, % (at 34.5Ma) 15-30 ASTM F 36
Recovery, % 25 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 10.34 (1500) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 50 (max.)
          Change in Thickness, % 20 (max.)
          Change in Compressibility, % 50 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 20 (max.)
          Change in Weight, % 40 (max.)
Binder Type Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2015 Registered
