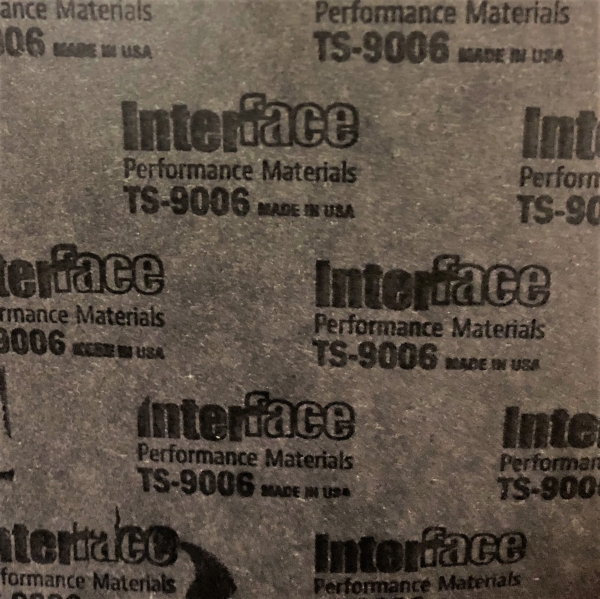

TS-9006

Thermo-Tork®/Nonasbestos Gasket Material

ASTM F-104: F729900E09M5

TS-9006 is a heavy-duty, high density gasket material with fully cured styrene butadiene rubber binder. It is recommended for use in oil, water, and steam applications with high flange pressures and short duration maximum temperatures up to 350°C (650°F).

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.52 (95) (min.) ASTM F 1315
Compressibility, % (at 34.5Ma) 5-20 ASTM F 36
Recovery, % 40 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 10.34 (1500) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Thickness, % 20-60 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 15-40 (max.)
Binder Type Fully Cured Styrene Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2008 Registered
