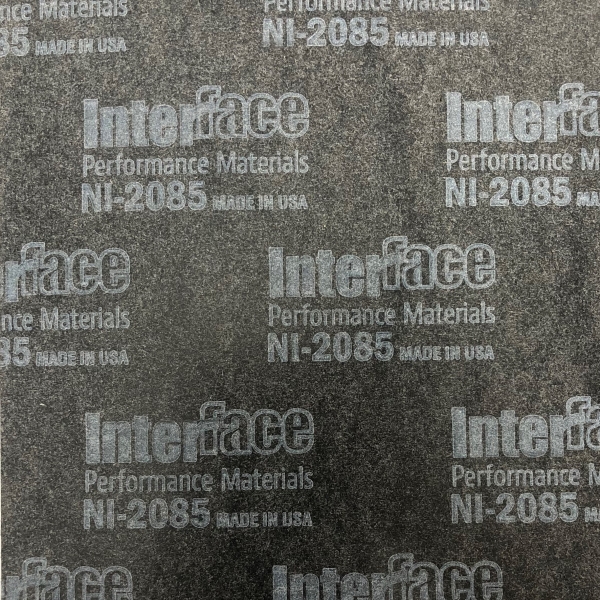

NI-2085
Standard / Nonasbestos Gasket Material
ASTM F-104: F723940E43M6
Material Description:
NI-2085 has a nitrile butadiene rubber binder for resistance to water, coolant, oil and fuel. It has excellent strength and sealability characteristics, and is intended for applications with short duration maximum temperatures up to 190°C (375°F). NI-2085 has UL component recognition.
Specification Properties:
| Property | Value | Method |
|---|---|---|
| Density, g/cc(lb/cu.ft) | 1.36 (85) (min.) | ASTM F 1315 |
| Compressibility, % (at 34.5MPa) | 10-20 | ASTM F 36 |
| Recovery, % | 50 (min.) | ASTM F 36 |
| Tensile Strength, AMD, MPa(psi) | 13.79 (2000) (min.) | ASTM F 36 |
| Fluid Resistance, IRM903 Oil | ASTM F 146 | |
| Change in Tensile Strength, % | 35 (max.) | |
| Change in Thickness, % | 10 (max.) | |
| Change in Weight, % | 30 (max.) | |
| Compressibility, % | 25 (max.) | |
| Fluid Resistance, Fuel B | ASTM F 146 | |
| Change in Thickness, % | 15 (max.) | |
| Change in Weight, % | 30 | |
| Binder Type | Nitrile Butadiene |
Remarks and Related Documents:
Specification values determined by the test methods required for ASTM F-104, Type 7 materials.
