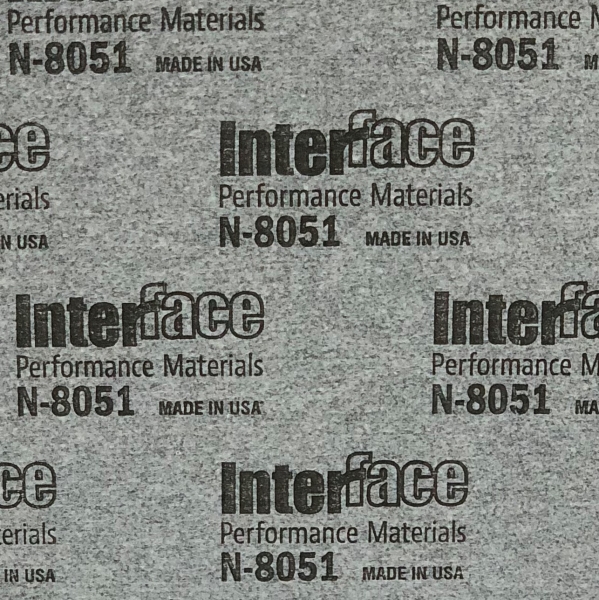

N-8051
Standard / Nonasbestos Gasket Material
ASTM F-104: F339000M9, Z1
Material Description:
N-8051 is a light-duty material for low internal pressure and low flange pressure applications up to 13.8 MPa (2000 psi). It has a nitrile butadiene rubber binder for resistance to oil and is intended for applications with short duration maximum temperatures up to 180°C (350°F).
Specification Properties:
| Property | Value | Method |
|---|---|---|
| Compressibility, % (at 6.9MPa) | 10-25 | ASTM F 36 |
| Recovery, % | 40 (min.) | ASTM F 36 |
| Tensile Strength, AMD, MPa(psi) | 2.76 (400) (min.) | ASTM F 152 |
| Fluid Resistance, IRM901 Oil | ASTM F 146 | |
| Change in Volume, % | 35 (max.) | |
| Fluid Resistance, Fuel A | ASTM F 146 | |
| Change in Volume, % | 45 (max.) | |
| Binder Type | Nitrile Butadiene |
Remarks and Related Documents:
Z1: Specification values determined by the test methods required for ASTM F-104, Type 3 materials.
