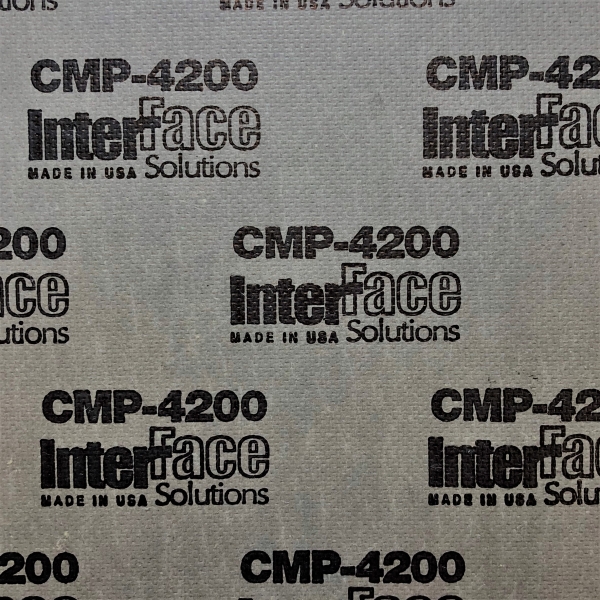

CMP-4200

Hydro-Fused®/Compressed MicroPore® Gasket Material

ASTM F-104: F729190E33M9

Material Description:

CMP-4200 is a solvent-free, high performance compressed MicroPore gasket material. It was developed for steam, water, oil, and chemical resistance in Original Equipment and Industrial applications. It has exceptional sealability, torque retention, crush and blowout resistance, and is intended for applications with short duration maximum temperatures up to 350°C (650°F).

Typical Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.55 (97) (min.) ASTM F 1315
Compressibility, % (at 34.5MPa) 7-17 ASTM F 36
Recovery, % 50 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 12 (1740) (min.) ASTM F 152
Flexibility, Mandrel Bend, 12 X Ga. No Cracks ASTM F 152
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Thickness, % 15 (max.)
          Change in Weight, % 25 (max.)
          Change in Tensile Strength, % 30 (max.)
          Change in Compressibility, % 17 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 15 (max.)
          Change in Weight, % 20 (max.)
Binder Type Fully Cured Nitrile Butadiene
  Styrene Butadiene Rubber Blend
Color Grey

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2008 Registered
