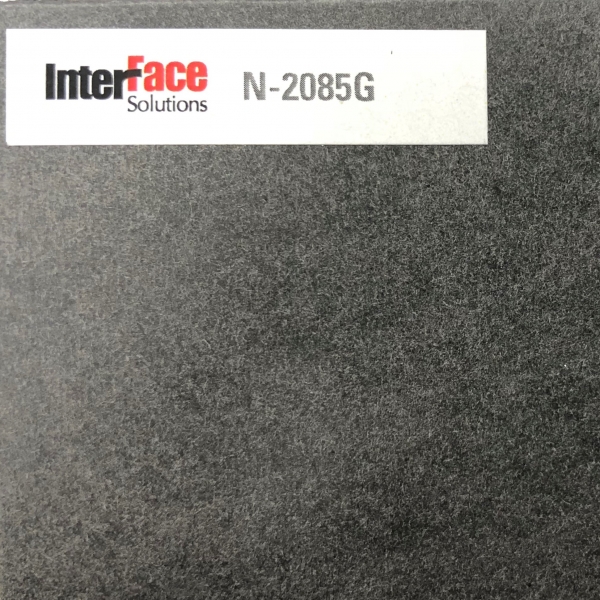

N-2085G

Standard/Nonasbestos Gasket Material

ASTM F-104: F723940E43M6

Material Description:

N-2085G is a fully cured nitrile butadiene bound material that offers excellent resistance to water, coolant, oil, and fuel. This product is available in close tolerance gauges for hermetic compressor valve plate applications, and is intended for short duration maximum temperatures up to 190°C (375°F).

Specification Properties:

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.36 (85) (min.) ASTM F 1315
Compressibility, % (at 34.5MPa) 10-20 ASTM F 36
Recovery, % 50 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 13.79 (2000) (min.) ASTM F 152
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 35 (max.)
          Change in Thickness, % 10 (max.)
          Change in Weight, % 30 (max.)
Compressibility, % 25 (max.)
Fluid Resistance, Fuel B %   ASTM F 146
          Change in Thickness, % 15 (max.)
          Change in Weight, % 30 (max.)
Binder Type Fully Cured Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2008 Registered
