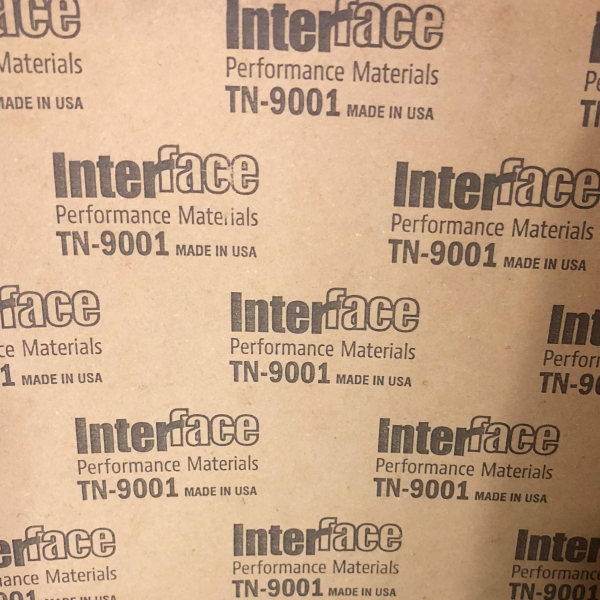

TN-9001

Thermo-Tork®/Nonasbestos Gasket Material

ASTM F-104: F729900E49M6

TN-9001 is a heavy-duty latent cure material with nitrile binder. It has excellent oil resistance and is intended for applications with short duration maximum temperatures up to 400°C (750°F).

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.28 (80) (min.) ASTM F 1315
Compressibility, % (at 34.5Ma) 15-30 ASTM F 36
Recovery, % 40 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 13.79 (2000) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 40 (max.)
          Change in Thickness, % 20 (max.)
          Change in Compressibility, % 35 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 30 (max.)
          Change in Weight, % 30 (max.)
Binder Type Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2008 Registered
