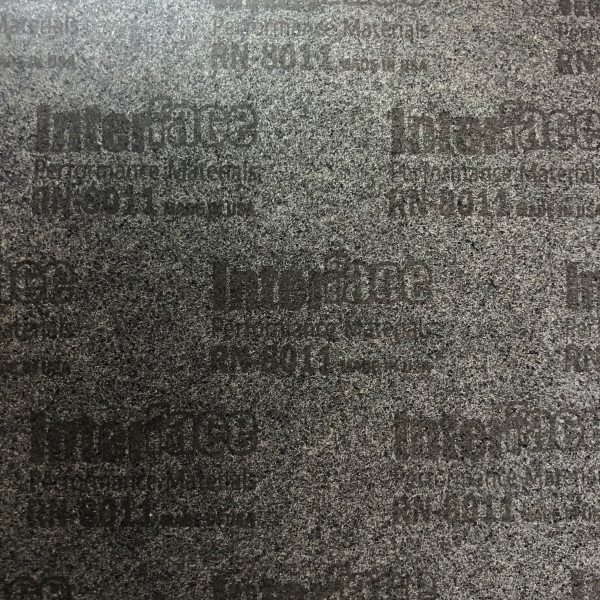

RN-8011

Standard/Nonasbestos Gasket Material

ASTM F-104: F339099E09M9

RN-8011 is a low density cellulose fiber material with high rubber filler content and a nitrile butadiene rubber binder. It provides excellent sealing of oil and water at low flange pressures, and is used primarily for engine and transmission pan gaskets, water pumps, and environmental seals. It is intended for applications with short duration maximum temperatures up to 180°C (350°F). RN-8011 has UL component recognition.

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 0.61 (38) (min.) ASTM F 1315
Compressibility, % (at 6.9Ma) 35-60 ASTM F 36
Recovery, % 15 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 1.52 (220) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Weight, % 120 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Weight, % 120 (max.)
Fluid Resistance, Distilled Water   ASTM F 146
          Change in Weight, % 45 (max.)
Binder Type Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2008 Registered
