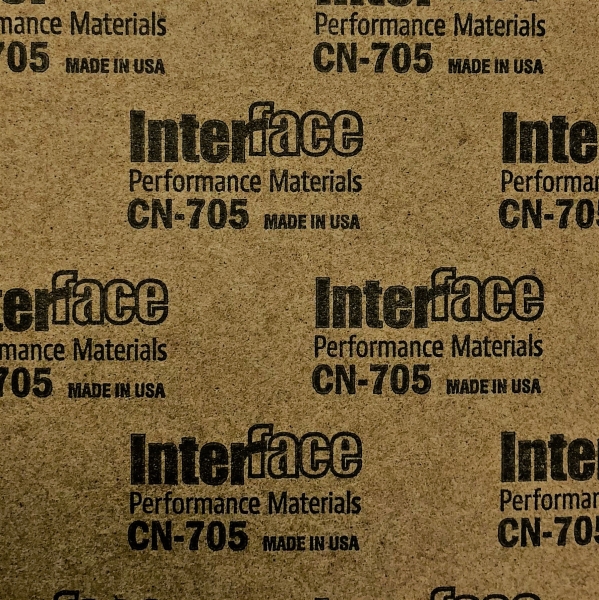

CN-705

Standard/Nonasbestos Gasket Material

ASTM F-104: F339199E99M9

Material Description:

CN-705 is a low-density, nitrile butadiene bound material that is suitable for use with oil, gasoline, and water. It is intended for use in applications with short duration maximum temperatures up to 180°C (350°F).

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 0.61 (38) (min.) ASTM F 1315
Compressibility, % (at 6.9MPa) 25-40 ASTM F 36
Recovery, % 25 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 5.52 (800) (min.) ASTM F 152
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Thickness, % 15 (max.)
          Change in Weight, % 70 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 25 (max.)
          Change in Weight, % 75 (max.)
Fluid Resistance, Distilled Water   ASTM F 146
          Change in Thickness 25 (max.)
          Change in Weight 50 (max.)
Binder Type Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2008 Registered
