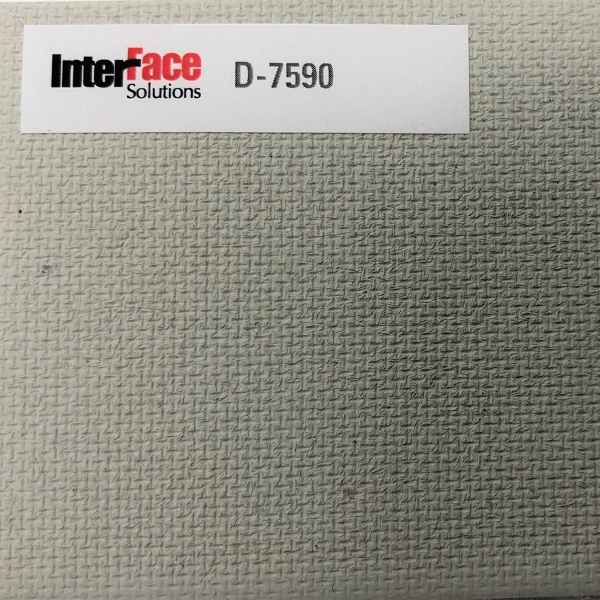

D-7590

Hydro-Fused®/Nonasbestos Gasket Material

Material Description:

D-7590 is a highly compressible, chemically resistant gasket material that is utilized as a filler material in PTFE enveloped, and metal-jacketed gaskets. It is intended for applications with maximum continuous operating temperatures up to 260°C (500°F).

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 0.56-0.665 (35.3-41.5) (min.) ASTM F 1315
Compressibility, % (at 34.5MPa) 30-50 ASTM F 36
Recovery, % 15 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 2.76 (400) (min.) ASTM F 152

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2008 Registered
