Heat Shield Filler Material

Material Description:

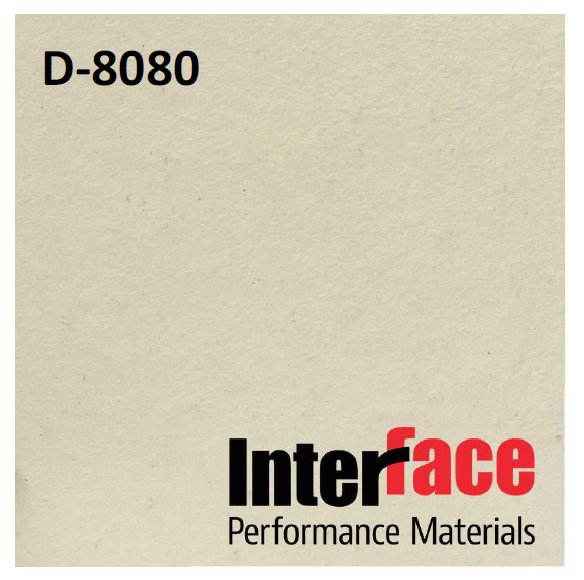

D-8080 is a thermal barrier material suitable for dry heat applications, electrical fixtures, and light-duty appliances. It can be used as a radiant heat shield where insulating properties are needed.

Typical Properties:

Density, g/cc(lb/cu.ft) 0.66 (41) (min.) ASTM F 1315
Tensile Strength, AMD, MPa(psi) 2.23 (320) (min.) ASTM F 152
Thermal Conductivity, W/m.K 0.10 ASTM F 433

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2015 Registered

To see the full PDF and print it please click on the link below.

View/Print PDF
