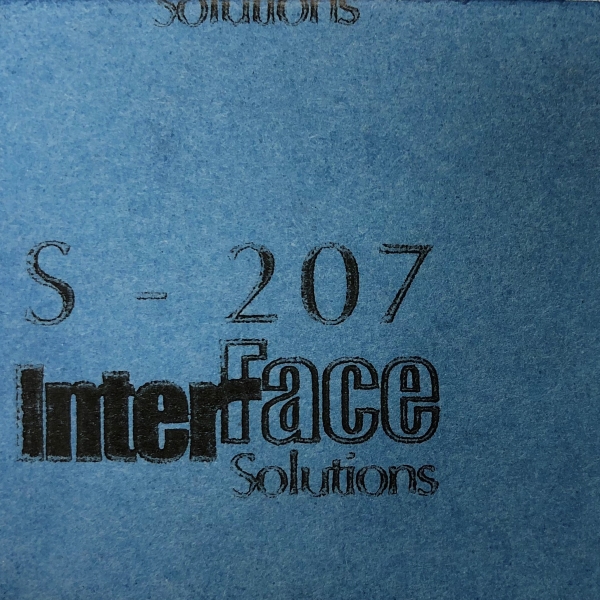

S-207
Standard / Nonasbestos Gasket Material
ASTM F-104: F339999E99M9
Material Description:
S-207 is a cellulose fiber gasket material with controlled-swell styrene butadiene rubber binder. It is a suitable replacement for asbestos fiber gasket materials, saturated papers, and is used in many oil and coolant applications in the aftermarket. It is intended for use in applications with short duration maximum temperatures up to 180°C (350°F).
Specification Properties:
| Property | Value | Method |
|---|---|---|
| Density, g/cc(lb/cu.ft) | 0.88 (55) (min.) | ASTM F 1315 |
| Compressibility, % (at 6.9Ma) | 10-30 | ASTM F 36 |
| Recovery, % | 30 (min.) | ASTM F 36 |
| Tensile Strength, AMD, MPa(psi) | 9.66 (1400) (min.) | ASTM F 152 |
| Fluid Resistance IRM903 Oil | ASTM F 146 | |
| Change in Thickness, % | 35 (max.) | |
| Change in Weight, % | 70 (max.) | |
| Fluid Resistance, Fuel B | ASTM F 146 | |
| Change in Thickness, % | 50 (max.) | |
| Change in Weight, % | 65 (max.) | |
| Fluid Resistance, Distilled Water | ASTM F 146 | |
| Change in Thickness, % | 50 (max.) | |
| Change in Weight, % | 65 (max.) | |
| Binder Type | Styrene Butadiene |
Remarks and Related Documents:
Specification values determined by the test methods required for ASTM F-104, Type 3 materials.
ISO 9001: 2015 Registered
