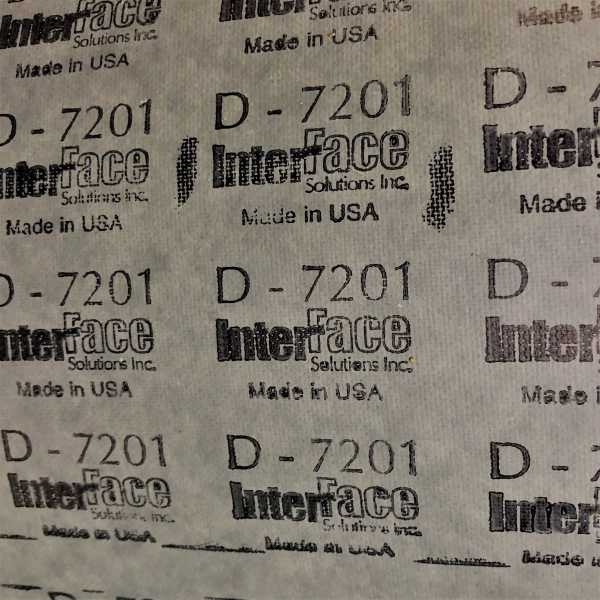

D-7201

Hydro-Fused®/Nonasbestos Gasket Material

ASTM F-104: F729900B4E33M9

Material Description:

D-7201 is a high density, fully cured nitrile butadiene bound gasket material that offers excellent mechanical strength, sealability, and erosion resistance to high pressure, high volume fluid flow and impingement. It is used in heavy duty automatic transmission valve bodies and other heavy duty applications, and is intended for applications with short duration maximum temperatures up to 290°C (550°F) and minimum continuous operating temperatures to -40°C/F.

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.50 (93.8) (min.) ASTM F 1315
Compressibility, % (at 34.5MPa) 5-20 ASTM F 36
Recovery, % 40 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 15.89 (2300) (min.) ASTM F 152
Flexibility, Mandrel Bend, 12 X Ga. No Cracks ASTM F 147
Creep Relaxation, % 25 (max.) (0.8mm ga.) ASTM F 38
Sealability, Fuel A, ml/hr 100 (max.) at (450psi/75psi) ASTM F 37
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 50 (max.)
          Change in Thickness, % 30 (max.)
          Change in Weight, % 20 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 15 (max.)
          Change in Weight, % 20 (max.)
Binder Type Fully Cured Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 3 materials.

ISO 9001: 2008 Registered
