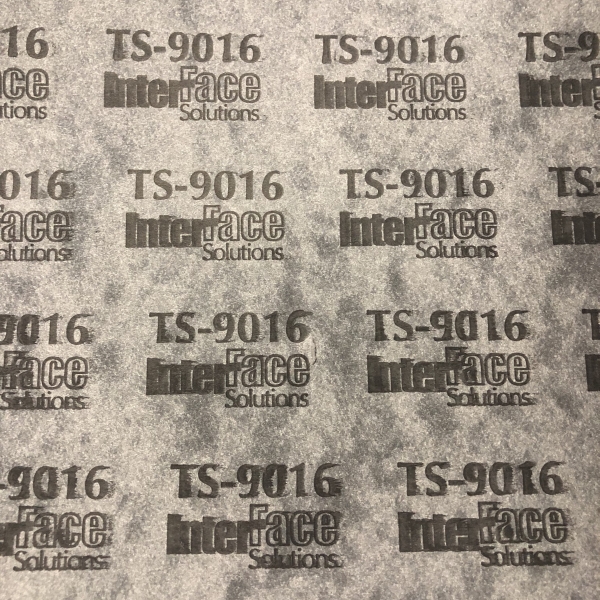

TS-9016

Thermo-Tork® / Nonasbestos Gasket Material

ASTM F-104: F729900E09M9

Material Description:

TS-9016 has a fully cured styrene butadiene rubber binder and a blend of Aramid and cellulose fibers. It is intended for oil and water applications with short duration maximum temperatures up to 290°C (550°F).

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.44 (90) (min.) ASTM F 1315
Compressibility, % (at 34.5Ma) 10-25 ASTM F 36
Recovery, % 40 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 12.41 (1800) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Thickness, % 25-65 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 10-40 (max.)
Binder Type Fully Cured Styrene Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2015 Registered
