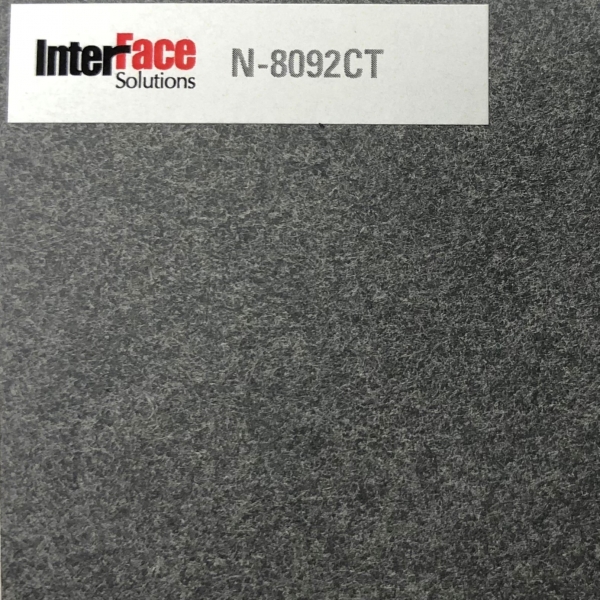

N-8092ct

Syntheseal®/Nonasbestos Gasket Material

ASTM F-104: F729900E59M9

Material Description:

N-8092ct (See also N-8092) is used primarily in hermetic compressor valve plate applications that require close tolerance gauge control for shimming. It is intended for applications with short duration maximum temperatures up to 180°C (350°F).

Specification Properties:

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.20 (75) (min.) ASTM F 1315
Compressibility, % (at 34.5MPa) 15-30 ASTM F 36
Recovery, % 35 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 11.03 (1600) (min.) ASTM F 152
Fluid Resistance, IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 30 (max.)
          Change in Thickness, % 20 (max.)
          Change in Compressibility, % 40 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 20 (max.)
          Change in Weight, % 40 (max.)
Binder Type Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2008 Registered
