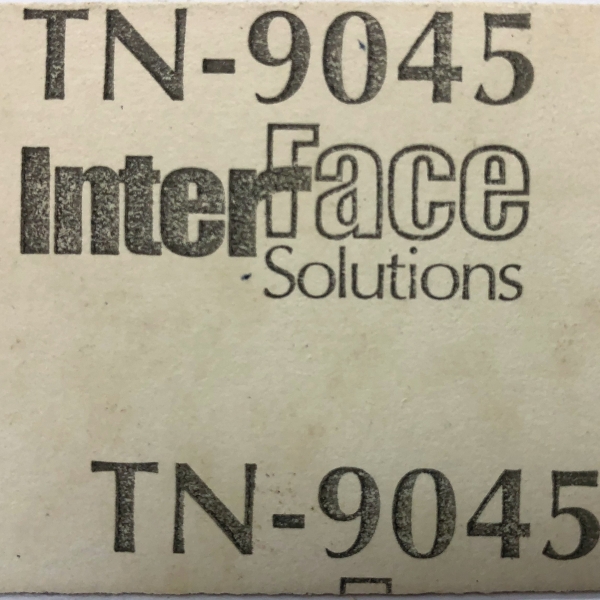

TN-9045

Thermo-Tork®/Nonasbestos Gasket Material

ASTM F-104: F729900E93M5

TN-9045 is a heavy-duty material for use in elevated temperature applications. Its unique acrylic binder system adds additional temperature resistance over conventional rubber binders.

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.28 (80) (min.) ASTM F 1315
Compressibility, % (at 34.5Ma) 10-25 ASTM F 36
Recovery, % 45 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 10.34 (1500) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 55 (max.)
          Change in Thickness, % 25 (max.)
          Change in Compressibility, % 30 (max.)
Fluid Resistance, Fuel B   ASTM F 146
          Change in Thickness, % 15 (max.)
          Change in Weight, % 35 (max.)
Binder Type Acrylic

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2008 Registered
