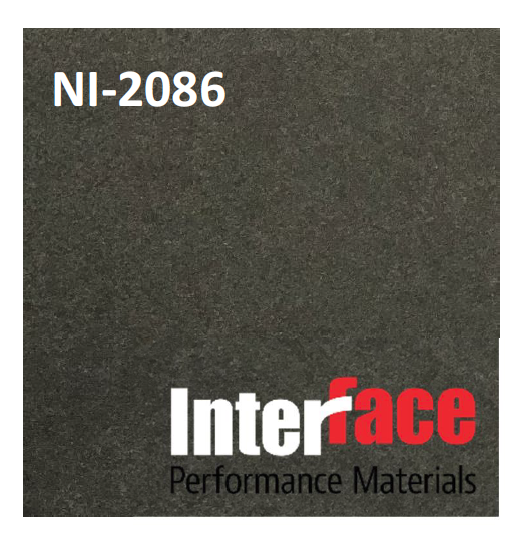

NI-2086
Standard / Nonasbestos Gasket Material
ASTM F-104: F723940E43M6
Material Description:
NI-2086 has a fully cured nitrile butadiene rubber binder for improved strength and fluid resistance. It is intended for applications with short duration maximum temperatures up to 190°C (375°F).
Specification Properties:
| Property | Value | Method |
|---|---|---|
| Density, g/cc(lb/cu.ft) | 1.36 (85) (min.) | ASTM F 1315 |
| Compressibility, % (at 34.5MPa) | 10-20 | ASTM F 36 |
| Recovery, % | 50 (min.) | ASTM F 36 |
| Tensile Strength, AMD, MPa(psi) | 13.79 (2000) (min.) | ASTM F 152 |
| Fluid Resistance, IRM903 Oil | ASTM F 146 | |
| Change in Tensile Strength, % | 35 (max.) | |
| Change in Thickness, % | 10 (max.) | |
| Change in Weight, % | 30 (max.) | |
| Compressibility, % | 25 (max.) | |
| Fluid Resistance, Fuel B | ASTM F 146 | |
| Change in Thickness, % | 15 (max.) | |
| Change in Weight, % | 30 | |
| Binder Type | Nitrile Butadiene |
Remarks and Related Documents:
Specification values determined by the test methods required for ASTM F-104, Type 7 materials.
ISO 9001: 2015 Registered
