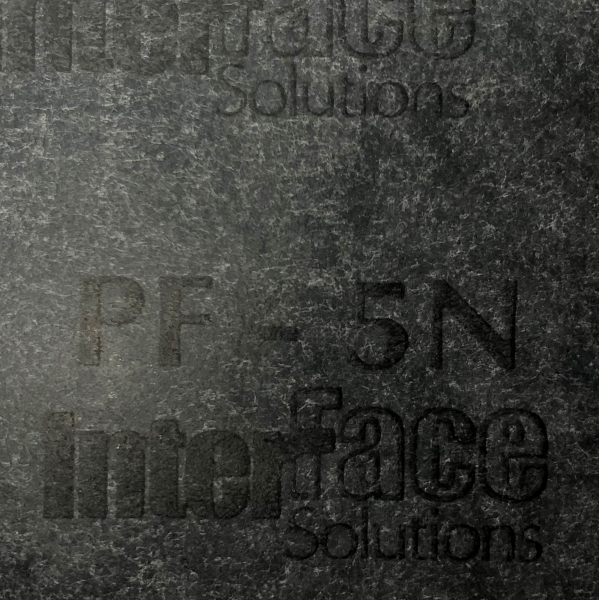

PF-5N

Pro-Formance®/MicroPore® Nonasbestos Gasket Material

ASTM F-104: F729100E93M9

PF-5N is a high density material with fully cured nitrile butadiene rubber binder for added fuel and oil resistance. It is recommended to replace calendered or joint sheet materials in applications with short duration maximum temperatures up to 230°C (440°F).

Specification Properties

PropertyValueMethod
Density, g/cc(lb/cu.ft) 1.44 (90) (min.) ASTM F 1315
Compressibility, % (at 34.5Ma) 5-20 ASTM F 36
Recovery, % 55 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 14.48 (2100) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Tensile Strength, % 45 (max.)
          Change in Thickness, % 15 (max.)
          Change in Compressibility, %   ASTM F 146
Binder Type Fully Cured Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2008 Registered
