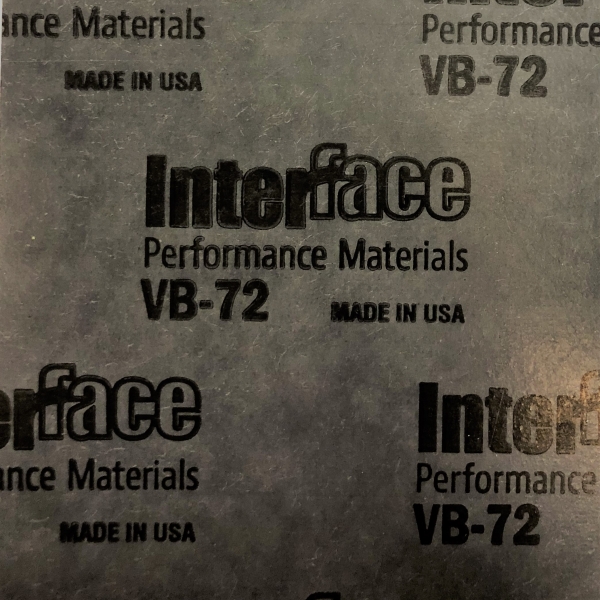

VB-72 Gasket Material

VB-72 Pro-Formance® / MicroPore® Nonasbestos Gasket Material is a high performance gasket material designed specifically for valve body and other heavy-duty applications with exposure to high fluid pressures and flow rates. It has excellent erosion resistance and is intended for applications with short duration maximum temperatures up to 290°C (550°F).

VB-72 Die Cut Gaskets

Accurate Felt & Gasket operates an ISO 9001 certified, state-of-the-art facility. We partner with leading gasket material manufacturers including Interface Performance Materials to provide you with a wide range of gasket materials that are available by the yard, in rolls and sheets, or manufactured into custom die cut gaskets.

VB-72 gaskets meet classification ASTM F-104: F729900M9A. In addition to manufacturing and die cutting VB-72 gaskets, we provide a range of secondary services including bar coding, labeling, custom packaging, kiss cutting, reverse engineering and much more.

Request a quote for VB-72 gasket material today or contact us for questions regarding specification data for this or any of our other gasket materials.

Specification Properties:

Density, g/cc(lb/cu.ft) 1.47 (92) (min.) ASTM F 1315
Compressibility, % (at 34.5Ma) 5-20 ASTM F 36
Recovery, % 40 (min.) ASTM F 36
Tensile Strength, AMD, MPa(psi) 15.86 (2300) (min.) ASTM F 152
Fluid Resistance IRM903 Oil   ASTM F 146
          Change in Thickness, % 30 (max.)
Binder Type Fully Cured Nitrile Butadiene

Remarks and Related Documents:

Specification values determined by the test methods required for ASTM F-104, Type 7 materials.

ISO 9001: 2015 Registered

To see the full PDF and print it please click on the link below.

View/Print PDF
